MEGA INFRA · BOQ Converter

Drop in our Candy PDF and their Excel. Get back their workbook populated, using their own formulas and layout, plus a proof report of exactly what was written, what was already correct, and where the two documents disagree.

Anything you disagree with, you settle in the app and regenerate. The consultant never has to leave the screen.

Runs entirely on your machine. Nothing is uploaded anywhere. The sidebar shows a build fingerprint — a hash of the .py/.css/.toml actually copied into the image, computed during the Docker build. It reads e.g. build d7d427a2e770.

A commit SHA was the obvious first choice and was wrong twice over: Coolify does not pass a commit SHA into a Docker Compose build, so an ARG silently falls back to dev forever; and a file naming the commit cannot live in the commit it names, so it could only ever name the parent. A hash of the shipped files is true by construction and cannot go stale.

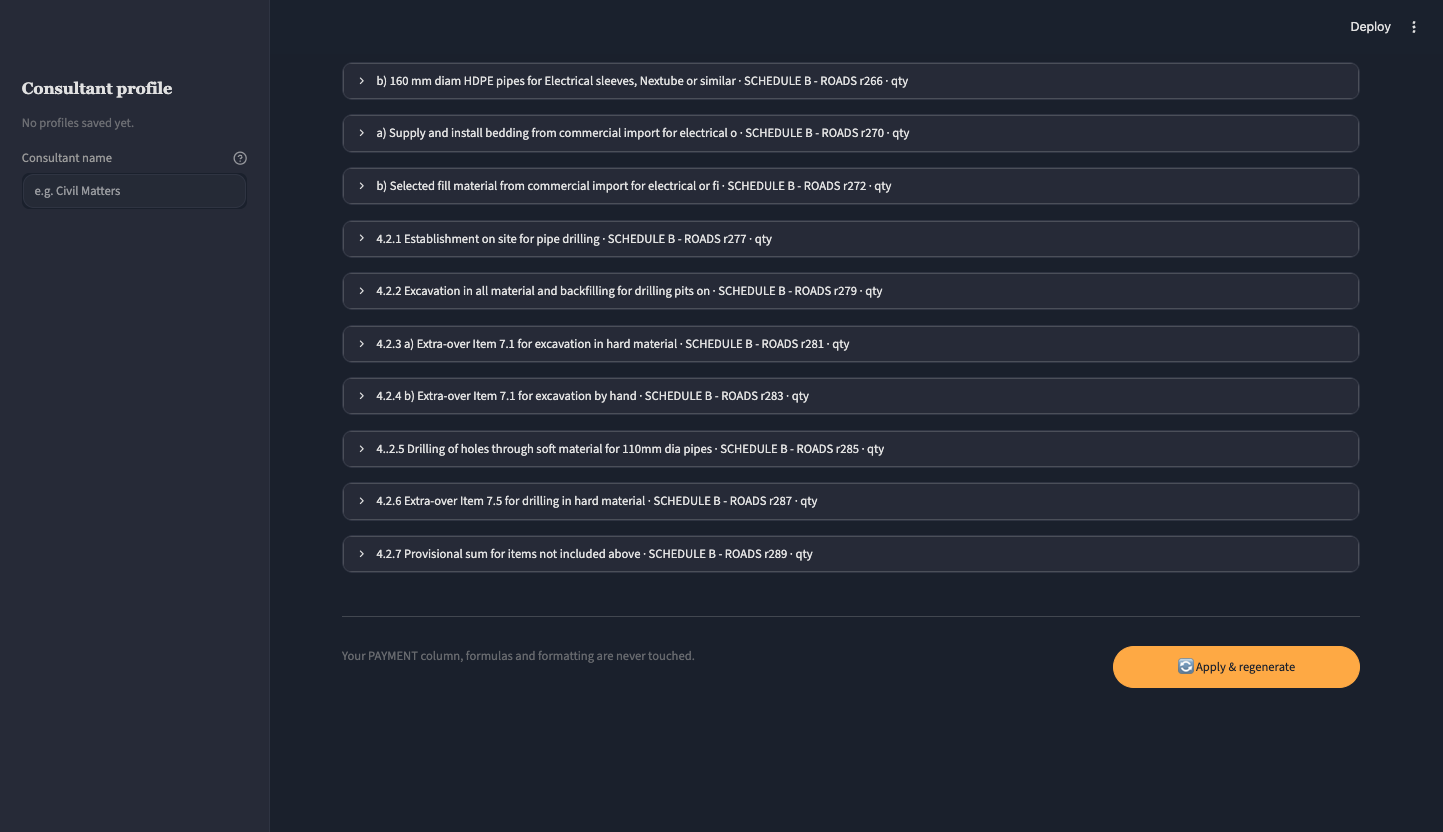

Settling a disagreement in the app

Where the two documents differ, the app writes nothing — your value stands. Each dispute is one collapsed row. Open it and choose:

• Keep yours (as it is) — the default, your file is untouched
• Use our PDF's value — take the figure from the Candy export
• or type a value — anything else, coerced to a number when it looks like one

Press Apply & regenerate and the choices are written straight into the workbook; the row then moves to "settled" and drops off the open list. The PAYMENT column, your formulas and your formatting are never touched.

Design system — MEGA INFRASTRUCTURE

Palette sampled from the dashboard. All tokens live in static/theme.css as CSS custom properties, so the brand can be retuned in one place without touching Python.

group	tokens
surfaces	--canvas #1A202C · --topbar #1A212D · --surface #262A37 · --surface-inset #252A36 · --surface-raise #363B49 · --hairline #2F3442
status fills	--success-fill #22383E / --success-edge #1B534A · --warn-fill #3A373C · --danger-fill #3A2D38
accents	--orange #FEA944 · --orange-soft #F1A962 · --orange-deep #DF8441 · --green #00CD8A · --red #F04141
text	--text #E1E1E1 · --text-muted #999999 · --text-warm #B3AC99 · --text-link #00CD8A

Warm neutrals are deliberate — #E1E1E1 sits on a warm axis and pairs with #B3AC99; pure #EEEEEE would read cold next to #FEA944.

On the accessibility flag: #F04141 measures 3.77:1 on the card surface, so it is used only for the severity edge and large marks. Any red text uses --red-soft #FF6B6B at 5.15:1, which clears AA.

Type is Fraunces for headings and Nunito for body.

Icons are real SVG, not emoji

Thirteen icons live in boq_engine/theme.py as inline SVG — 24x24, 1.75 stroke, round caps, so the set looks drawn by one hand. They inherit currentColor, so they pick up the palette for free, and being inline they need no network and no icon font.

They sit in the brand mark, the uploader labels, the KPI tiles, the pills and the section headings — everywhere HTML actually renders.

Not on buttons or tab labels. Streamlit renders those as plain text, so an inline SVG there leaks to the user as literal <svg …> markup, and emoji read as emoticons. Those labels are deliberately typographic, which looks more corporate anyway.

Two implementation notes worth knowing

The stylesheet is injected with st.html, not st.markdown. Markdown injection duplicated the style block on every rerun, and one malformed selector silently killed every rule after it — the page rendered unstyled with no error anywhere. Serving it from static/ was tried and doesn't work: Streamlit only serves its own hashed assets from that route, and an arbitrary path falls through to the SPA shell and returns index.html as text/html. st.html inserts the sheet into the page, isn't iframed, and replaces cleanly.

Buttons and tab labels are plain text. See the icon note above — this is the one place Streamlit refuses to render HTML, and it fails loudly.

Status messages are quiet pills, not alert blocks. A filled st.warning bar shouts at the reader for something that is background information. theme.pill() sits at the same volume as the legend it belongs next to. Genuine errors — source lines that have nowhere to go, subtotals that do not reconcile — still use real alerts, because those are the thing to act on.

Dispute choices are real Streamlit widgets. Raw HTML <select> was tried first and silently does nothing — the value never reaches Python, because st.markdown(unsafe_allow_html=True) has no channel back to session state. Keys are derived from the cell (choice::<sheet>::<row>::<field>) so a choice survives a rerun and can be read back to build the override map.

The panel has to be worth reading

An early build reported 160 "disagreements" on Central Towers. Almost none of them were disagreements:

• 147 were the formula guard firing once per row. The consultant's amount column is a formula on nearly every line, so protecting it was correct behaviour being reported as "a person must choose". It is now its own quiet note (formula), and cannot dilute the findings that need a decision.
• 12 were unit formatting: PC Sum vs PCSum vs PC.Sum — the same unit written three ways. Unit comparison now collapses case, spacing and dots, so only genuinely different units are flagged.

160 became 19, and every one of those 19 is real. A panel that cries wolf at 160 teaches people to scroll past it, which is worse than having no panel.

What the 19 actually are, and the ones that matter:

finding	count	why it matters
quantity disagreement	7	e.g. template 47.5 vs source 95.0
unit mismatch	11	m vs m³ on 5 rows — pricing a cubic metre as a linear metre is a serious error, and only a cross-document check catches it
source has no quantity	1	ours is "Rate only", theirs is real

The rule that matters most

Where the two documents disagree, the consultant's value is left alone and the difference is reported. The app never overwrites their work to match ours.

Every finding carries a severity decided in the data layer, not guessed from the sentence text — so a red card always means "a person must choose":

severity	meaning	on your sample
decision	the two documents genuinely disagree	1 — overheads qty 15 000 vs 1 500 000
source_gap	our PDF has no figure; theirs is better	13 — all of Section 4
source_defect	our PDF printed something corrupt	2 — the ? litre sign
resolved	the consultant settled it in the app	0 until they do
note	worth knowing, no action implied	totals written

A cell with an override is written instead of left alone, and the dispute drops to resolved so it stops being flagged.

Two cases where that mattered:

• Candy prints the litre sign as ?. Copying it into their file would have introduced a defect that was not there. Their ℓ was kept.
• Our PDF has all of Section 4 as "Rate only" (qty 0) — cable ducts and directional drilling were never quantified. Their template has real provisional quantities (100 m³ of trench, 200 m of 110 mm pipe, 70 m of drilling). Writing our 0 would have destroyed better data.

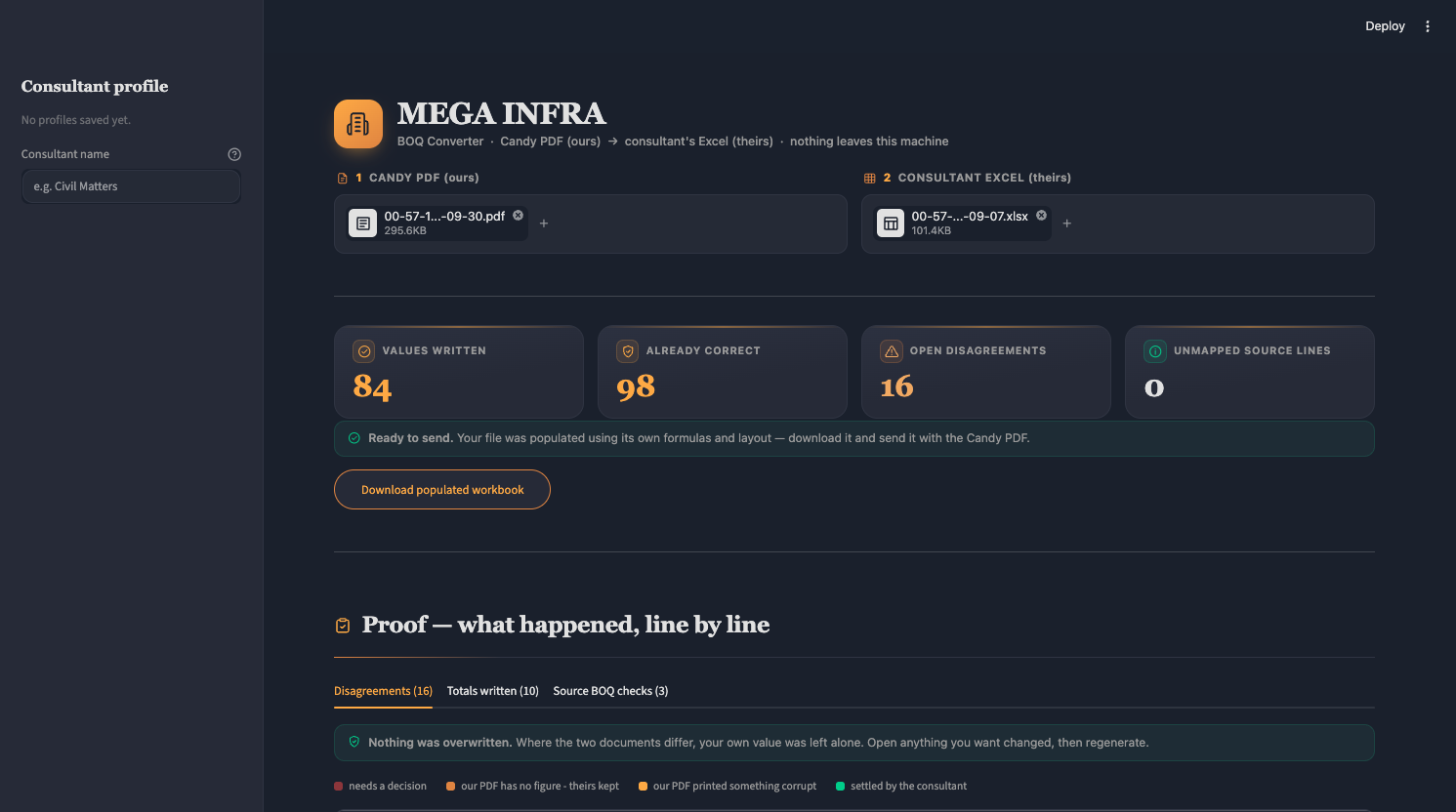

Results on the sample

Values written	84
Already correct (verified)	98
Source lines with nowhere to go	0
Disagreements reported, none overwritten	16

Their workbook's own COMBINED SUMMARY recomputes to R5,696,934.93 — matching the Candy PDF's grand total to the cent, through their own formulas and their own VAT line.

Things the source BOQ gets wrong

Reported, not fixed — these are in the PDF:

1. 1.2 Scheduled Time-Related Items — R31,500.00 unexplained. Its priced lines total R1,053,000.00 against a printed R1,084,500.00. Every other 1.2.x line is blank/INCL. Worth a phone call.
2. 1.6 Temporary Works — printed total swallows 1.5 Protection of Services (R144,908.18), which the document numbers after it.
3. 2.1 Earthworks — printed total swallows 2.2 Selected Sub Grade (R146,983.50).
4. Item 4..2.5 (double dot), 2.5.4 used twice, two sections numbered SECTION 6, units drifting between m2/m²/m3/m³/?.

Layout

static/theme.css         design tokens + all styling (edit this to retune)
.streamlit/config.toml   base Streamlit theme colours
boq_engine/extract.py    PDF -> tree            (deterministic, no model)
boq_engine/template.py   layout detect + align + write + totals
boq_engine/validate.py   arithmetic + structure checks
boq_engine/profiles.py   per-consultant template profiles
boq_engine/theme.py      injects the stylesheet, builds finding cards
boq_engine/populate.py   tree -> standalone xlsx + csv
app.py                   Streamlit UI
run.py                   CLI: PDF -> xlsx + csv

How it handles a different template

Two real consultant workbooks have been run through it end to end:

	Blueberry Square	Central Towers
source PDF	11pp, 5 sections	20pp, 18 sections
consultant workbook	3 sheets, Candy-derived	53 sheets, SANS 1200
source total reproduced	R5,696,934.93 exact	R38,250,252.60 exact
lines written	83	182
already correct	94	159
lines with no home	1 of 108	33 of 226
consultant formulas destroyed	0	0

What it takes to cope with a template nobody has seen before:

• Item numbering. Candy prints references three ways - 1.1.1, 110...., and a leading-dot .01. All are recognised. A running counter is rebuilt per section, because Candy restarts .01 under every repeated heading while the consultant's template numbers them sequentially.
• Wrapped headers. A narrow column splits QUANTITY into QUAN- / TITY. Both header rows are read and joined, hyphen stripped, or the quantity column is simply never found.
• The header lies. On the SANS 1200 template the header advertises DESCRIPTION in column E while the text sits in D - and moves within one sheet. So the description is treated as whatever run of columns sits between ITEM and UNIT, not a single column.
• Numbers are implied, not repeated. A blank item cell still belongs to the number printed above it, so that is carried down. Without it two thirds of the rows read as unnumbered and nothing can match them.
• The pool is cut to what matters. Aligning against all 1314 rows of a 53-sheet workbook makes the aligner cherry-pick; it is restricted to the sheets that own a section named in the source, leaving 499.

The hard guarantee: the consultant's workbook is never damaged. Every cell that held a formula still holds it. A guard stops each write, and a final pass re-reads the original and restores anything disturbed, so the promise is checked rather than intended. On the SANS 1200 template, where quantities are derived (=G35, =CEILING.MATH(...)), writing a literal over that would destroy the engineer's model while looking like it worked.

A person decides the rest

The aligner leaves some lines unplaced because nothing scored high enough, and that is the wrong moment to guess — where a description repeats in the document only a person can say which occurrence is which. So the Unplaced tab lists every such line with its best five candidate rows, already ranked and scored:

143.01  Over 1,0 m up to 2,0 m   —   source: 3 500.0 m @ 138.93
    1200DB · row 204 · 143.01 .01 Over 1,0 m up to 2,0 m   [97%]
    1200DB · row 197 · 143.01 Excavate in all materials…    [76%]
    1200LE · row 91  · — .01 Length x 400mm                [47%]

Pick one, or leave it unplaced to keep it out of the workbook. Chosen lines are written on the next run and the same verification gate applies to the result.

The download is gated

Nothing is offered for download until the output file has been read back off disk and checked against the source. It does not trust what the writer believes it did:

check	fatal?	on Blueberry	on Central Towers
every formula the consultant had is still there	yes	12 checked, 0 damaged	3 633 checked, 0 damaged
no sheet went missing	yes	3 → 3	53 → 53
every write actually landed in the cell	yes	70 of 70	225 of 225
every source line accounted for	no	107 of 108	193 of 226
nothing replaced without a decision	no	1 flagged	6 flagged
the workbook's own arithmetic recomputes	no	R6 551 475.17	R10 627 811.60

A failed fatal check removes the download button rather than showing a warning somebody can scroll past. Recalculation needs LibreOffice; when it is absent that check is skipped cleanly and the structural checks stand on their own, which is why the container image does not carry it.

The Verification tab also shows, sheet by sheet, exactly what the app decided about your columns — header row, item, description run, unit, quantity, rate, amount. If a column is wrong you can see it and say so, instead of wondering what the tool assumed.

Known limits

• Central Towers coverage is 90% automatically (203 of 226 lines), with the remaining 23 surfaced for a human rather than guessed at. The 33 unmatched lines are reported rather than written somewhere plausible, which is the safe failure — but it does mean that workbook is not finished. They cluster by section: 200 (9), 143 (7), 141 (4), 142 (4), 146 (3), 110 (2), 190 (2), 170 (1), plus one c) sub-line. Sections 141–143 and 200 are where Candy's running .01 counter still collides on the same number for genuinely different items, so those need a human to place.
• Column bands are tuned for A4 portrait Candy output. A different print layout needs BANDS in extract.py re-measured.
• The Central Towers workbook carries external links (='[9]1200MF'!I56). Those are preserved but will not resolve without the linked file.
• Description joins can drop a space where Candy's print engine split a word (Fixed-ChargeItems). Cosmetic.
